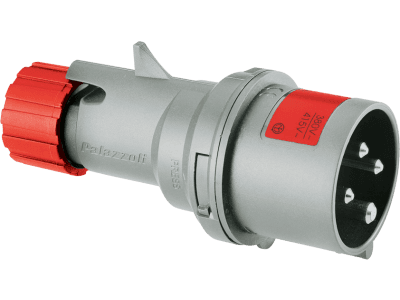

MULTIMAX STRAIGHT PLUG 63A 3P+E 380-415V 50-60HZ 6H IP67
Max conductor section 25mm²
Tightening diameter 18,5÷29 mm
Front panel 710336s.png
Min conductor section 4mm²
Rated current 63A
Shock resistance IK08 according to IEC/EN 62262
Frequency 50/60Hz
IP Protection degree IP67
Poles 3P+
Clock Position 6h
Rated operating voltage 400V
Rated insulation voltage 690 V
Manufacturing material Technopolymer Recyclable Palazzoli
Execution Mobile
Terminals type Screw - indirect clamping
Colour Grey RAL 7042
Standard plug-socket IEC 60309-2
Min. Amb. Temp. -25°C
Max. Amb. Temp. +50°C
Storage room temperature MIN -30°C
Storage room temperature MAX +70°C
